HUDDLE CAM G3 PTZ controller
1 in stock
Additional information
| Owner | Steven McGrath |
|---|
Product Details

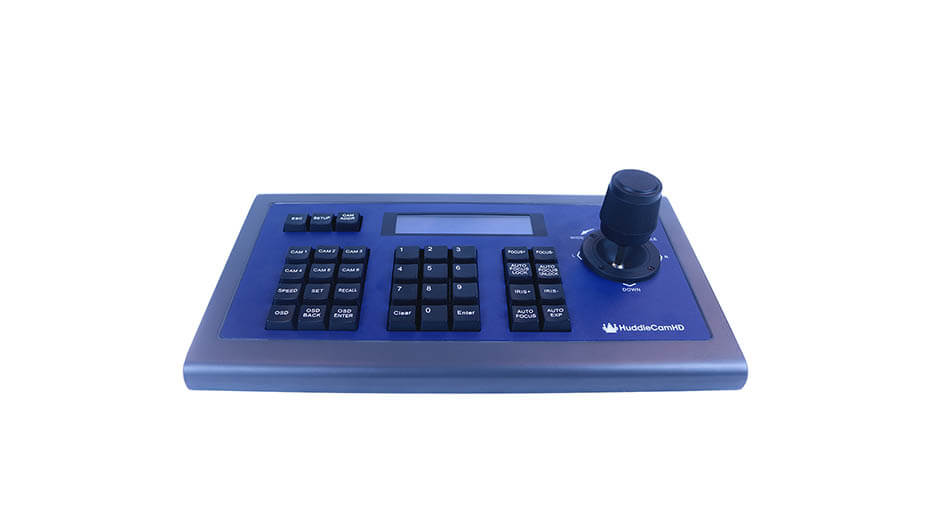

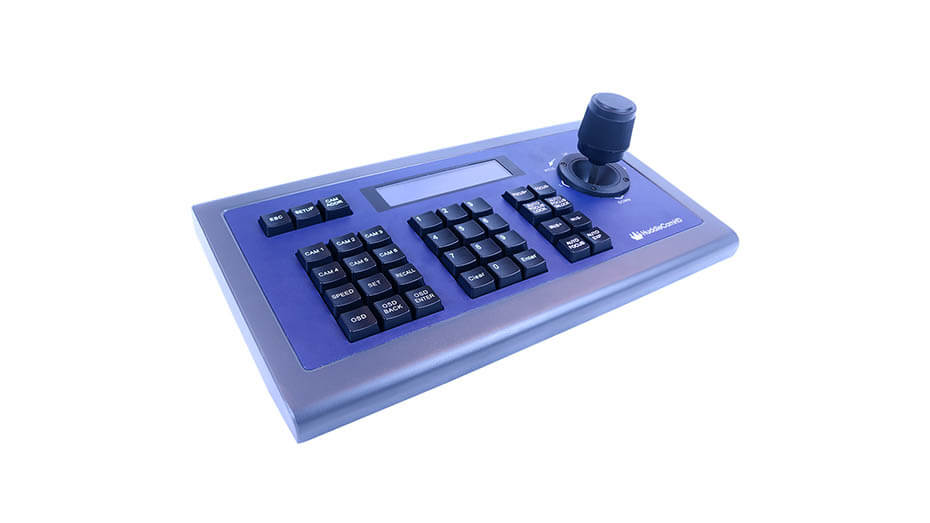

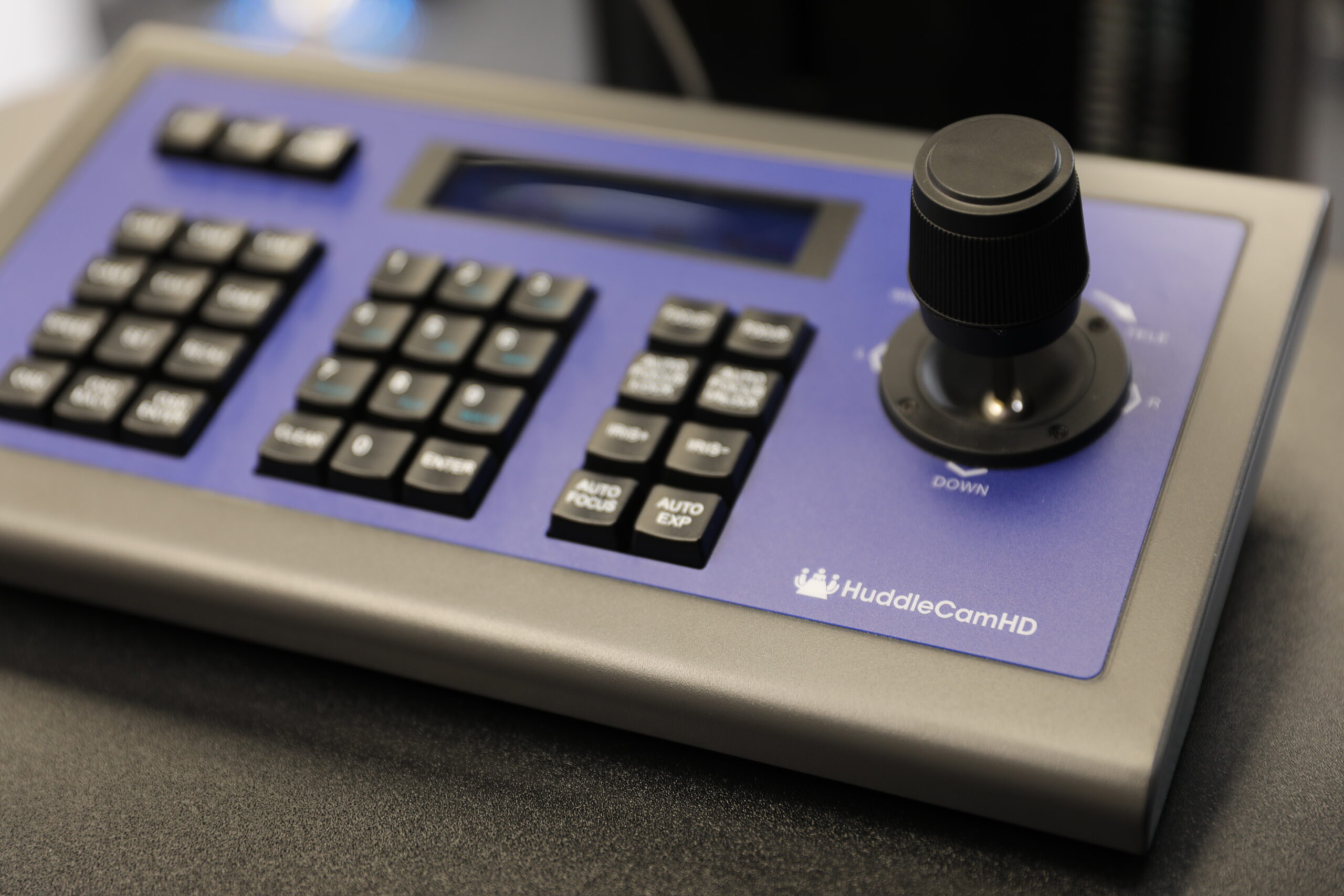

Introducing the re-designed HC-JOY-G3 PTZ joystick controller from HuddleCamHD. This third-generation joystick includes everything you loved about our second-generation joystick with significant improvements for user experiences.
Six Quick Camera Select Buttons
Designed with a wide variety of PTZ camera operation environments in mind, the third-generation joystick now features six quick camera select buttons on the left side of the controller.
Universally Compatible
All HuddleCamHD cameras are designed for plug-and-play compatibility with web-based video conferencing software like Skype, GoToMeeting, WebEX, or Zoom. Enjoy seamless integration even with live streaming applications like Facebook Live.
Resources:
Additional Information
- Durable Metal Housing
- VISCA, PELCO-P & D
- RS-232, RS-422, & RS-485
- On Screen Display
- Variable Speed PTZ control
- Iris, Focus, Home, Backlight, & Preset controls
- 6 Camera quick select buttons
- Activity LEDs
- Easy setup
- Three-Axis Joystick
- No more useless buttons!
Technical Specifications

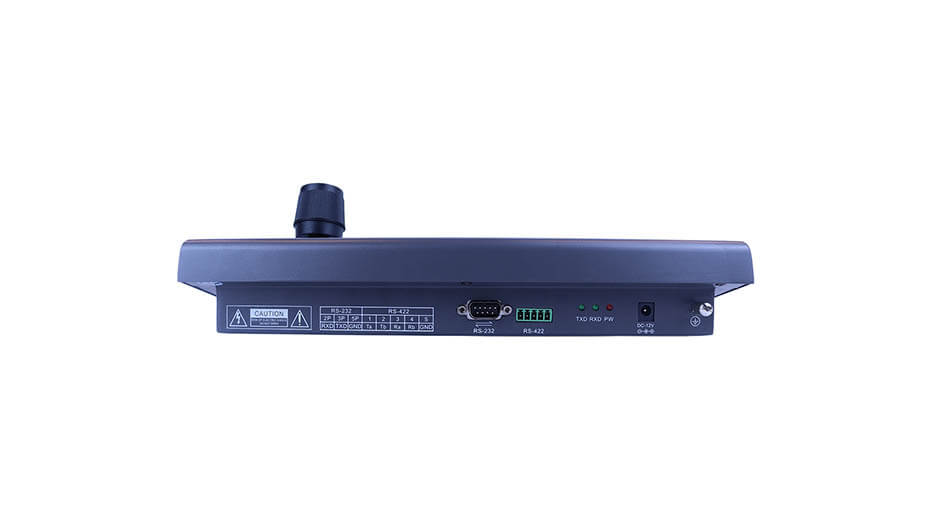

- Connections: RS-232, RS-485, RS-422
- Baud Rate: 1200-19200 bps
- Interfaces: DB9 RS-232; 5SCT RS-485/RS-422
- Maximum Cameras: Control up to 255 Cameras
- Maximum Presets: Up to 255 Presets
- Maximum Distance: 3,937′ (1200m) using 24 gauge twisted pair
- Power: 6W (12VDC)
- Working Temp: 14°F – 122°F (-10°C – +50°C)
- Working Humidity:
- Weight: 3.4 lbs | 1.6 kg
- Dimensions (in.): 12.6″(W) x 7.1″(D) x 4.3″(H)
- Dimensions (mm.): 320mm(W) x 181mm(D) x 110mm(H)
