Effective Sensor Size
2/3 inch sensor size when using 4K B4 mount
(Actual sensor size 23.10mm x 12.99mm)
BLACK MAGIC URSA Broadcast G2 4.6K cameras Package
1 in stock
Additional information
| Owner | Steven McGrath |
|---|
Product Details
Camera Package Includes:
2 BLACK MAGIC URSA Broadcast G2 4.6K cameras
Includes Fujinon HD 17x or 18x B4 mount lens with 2x extender, rear zoom and focus controls,
14 inch HP Computer for CCU control via SDI connection, BlackMagic Design 4 SDI input ATEM
switcher, video tripod with Fluid head, AC power supply & 7 inch on camera monitor (HD-SDI Out)
Samsung T7 1TB SSD hard drives to ISO record camera available upon request
The world’s most flexible broadcast camera!
The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! It’s a perfect solution for broadcasters because it uses the lenses and batteries you already own! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. This means it’s compatible with all video software and broadcast media management systems. You can even change the lens mount! No other broadcast camera is so flexible!
Get Digital Film Quality for Broadcast
The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in broadcast! The 6K sensor features a resolution of 6144 x 3456 so it’s flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it’s perfect for color correction. Using digital film in broadcast is a revolution in image quality!
Exceptional Low Light Performance
The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it’s optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.

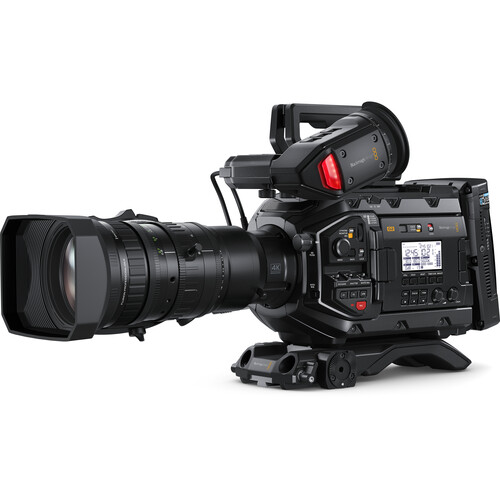

Compatible with B4 Broadcast Lenses
The URSA Broadcast G2 features a B4 broadcast lens mount that includes optics specifically designed to match the camera’s sensor. The B4 lens mount lets you use modern Ultra HD lenses or lower cost HD lenses. Older HD lenses often feature resolutions well beyond HD, so you get great quality at low cost! B4 lenses are fantastic because they are par-focal, so the image stays in focus as you zoom in and out, so you don’t need to constantly chase focus as you shoot. That lets you work much faster! You also get full electronic lens control to adjust focus, iris and zoom using the camera’s controls, or remotely! Plus if you want to use alternative lenses, you can change the mount to PL, EF and more!
Use CommonMedia and File Formats!
URSA Broadcast is designed to work with standard file formats that are used by all broadcast systems and editing software. You can record in ProRes 422 HQ and ProRes 422 into QuickTime files. The new Blackmagic URSA Broadcast G2 model can even record into H.265 for incredibly small files at 60:1 to 285:1 compression ratios, in 10-bit broadcast quality. Plus you can record to Blackmagic RAW files, a revolutionary new format designed to capture and preserve the quality of the sensor data from the camera. That means you get the perfect range of file formats designed for all types of workflows.
Dual MediaSlots for Non‑Stop Recording
With dual CFast 2.0 recorders and dual SD/UHS-II card recorders, you can choose the media that’s best for you! Both types of media are standard, inexpensive and readily available at computer and camera stores. Plus with dual media slots, URSA Broadcast gives you non stop recording! When a card is full, recording automatically continues onto the next card so you can swap a full card while recording continues. You get enough speed to record high quality ProRes and H.265 video file formats, even when working in Ultra HD at high frame rates. That means URSA Broadcast G2 is easy to integrate into your existing broadcast systems. You can even record 12-bit Blackmagic RAW cinema files!
Resources:
BlackmagicURSABroadcastG2Manual
Software:
https://www.blackmagicdesign.com/support/family/professional-cameras
https://www.blackmagicdesign.com/products/blackmagicursabroadcast
Additional Information
Camera Features
Lens Mount
B4 2/3 inch installed
Active EF mount also included
Lens Control
Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.
Lens Correction
In-camera correction of color fringing when using compatible broadcast lenses.
Dynamic Range
13 Stops
Dual Native ISO
0dB and 18dB gain.
Sensitivity at 0dB Gain
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
additional 1.1 stop light loss using 4K B4 mount.
Signal to Noise Ratio
64.62dB for 2160p
Ultra HD scaled from 5.3K
Built in ND Filters
Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
ProRes Shooting Resolutionsand Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3Kwindowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
1920 x 1080 (HD) up to 120 fps
scaled from 2.7K windowed sensor
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3Kwindowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
H.265 Shooting Resolutionsand Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3Kwindowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
H.264 Shooting Resolutionsand Frame Rates
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
Blackmagic RAW Shooting Resolutionsand Frame Rates
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
1920 x 1080 (HD) up to 150 fps
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.
Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.
Metadata Support
Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
SDI Video Inputs
1
SDI Video Outputs
1
SDI Monitor Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone style headset for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Lens Control
1 x 12-pin Hirose Broadcast Lens Connector
Remote Control
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
1 x USB Type‑C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type‑C for software updates.
