Blackmagic Design HyperDeck Studio HD Plus
Blackmagic Design HyperDeck Studio HD Plus
Blackmagic Design HyperDeck Studio HD Plus - Image 2
Blackmagic Design HyperDeck Studio HD Plus - Image 3
Blackmagic Design HyperDeck Studio HD Plus - Image 4

Blackmagic Design HyperDeck Studio HD Plus

Category: Tag: Brand:
Add to Quote

2 in stock

Additional information

Owner

David Townsend LLC

Product Details

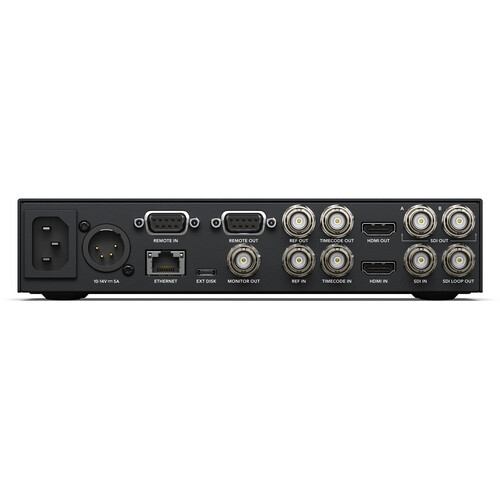

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, this unit is a compact recording/playout powerhouse. A loop-through output and 3G-SDI monitor output as well as reference and timecode in/out, allow this device to fit into a broadcast environment.

Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
UHD 4K Recording and Playback
The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60
Video Inputs
6G-SDI and HDMI 2.0 inputs
Video Outputs
Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices
HDR
The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output
Supported Codecs
ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime

DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps

H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

VTR-Style Controls

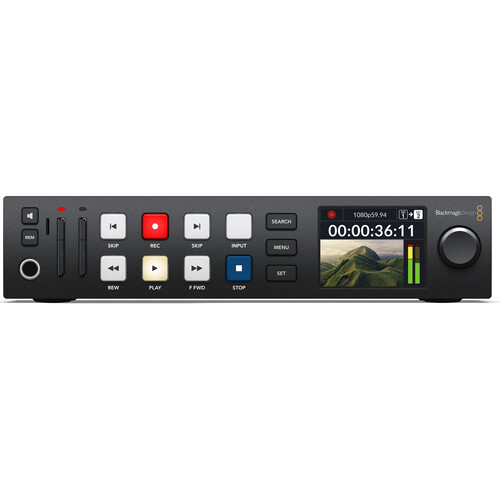

Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit’s front panel also features a built-in LCD screen that allows you to monitor input or play back video
Audio Output
The unit features a built-in speaker as well as a 1/4″ headphone jack
Included Software
The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup

Additional Information

Key Features
  • Records up to 4K DCI at 30 fps
  • Plays Back up to 3840 x 2160 at 30 fps
  • 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
  • 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
  • Records ProRes, DNxHD, and H.264
  • Records in H.264 SDI 4:2:2 10-Bit
  • Front-Panel Buttons, Jog Wheel, LCD
  • Timecode and Reference Input/Output
  • 1/2 Rack-Mountable Form Factor
  • USB-C, 1G Ethernet, RS-422
