Enttec Open DMX USB Lighting Controller
1 in stock
Additional information
| Owner | David Townsend LLC |
|---|
Product Details

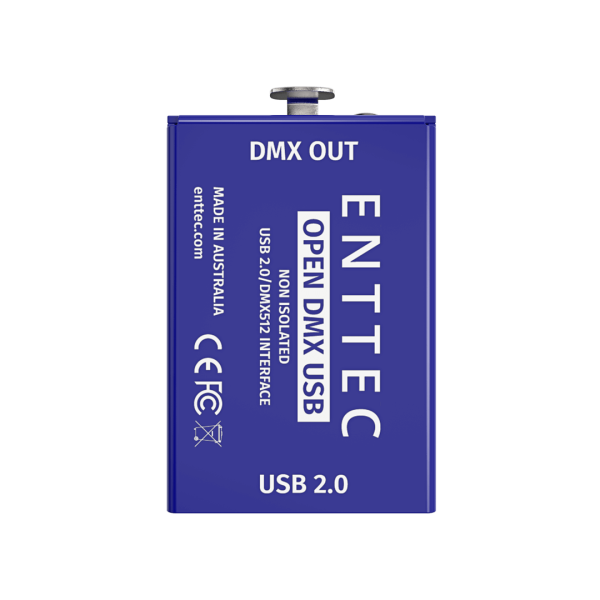

The Open DMX USB features a robust USB type-B port to connect to your computer and a 5-pin DMX output to connect to your DMX lighting. With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.
The Open DMX USB features a reliable USB Type-B port, ensuring a strong connection between your computer and the device. This allows for seamless data transfer during operation.
Its 5-pin DMX output easily connects to your DMX lighting system, offering compatibility with industry-standard equipment.
It supports control of 512 DMX channels and full compatibility with a wide range of 3rd party software, giving users substantial capacity for managing complex lighting setups.
The widely compatible FTDI driver the Open DMX USB uses to communicate with your computer is compatible Windows, macOS and Linux operating systems, giving a wide scope for flexibility.
Resources:
Additional Information
Specifications
Connectors 1* DMX Output (Female XLR5), 1* USB 2.0 Type-B
IP rating IP20
LED indicators No
Supported protocols USITT DMX512-A
Standalone playback No
MIDI No
Maximum output channels 1 universe (512ch)
Configuration software No
Firmware updates No
Input voltage 5V DC (via USB)
Input current 300mA
Power draw 1.5W
Environmental Operating temperature 0°-50°C
32°-122°F
Environmental Operating humidity 5% – 95% (non-condensing)
Body material Folded Aluminium
Mounting options N/A
Unit dimensions 77x40x40 mm
Unit weight 61 g / 0.13lbs
Shipping dimensions 125x75x70 mm
Shipping weight 0.16kg / 0.35lbs
