Mega-Lite M-Sphere Moving Head Mirror Fixture
2 in stock
Additional information
| Owner | Aaron Salinas LLC |
|---|
Product Details

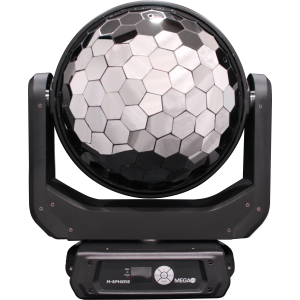

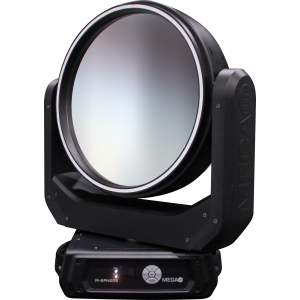

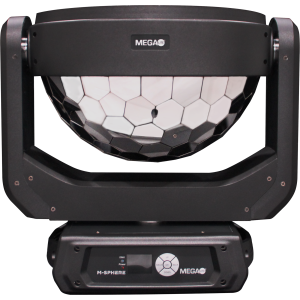

M-sphere: our advanced moving head mirror fixture, featuring a flat beam reflecting mirror on one side and a rotating half mirror ball on the other.
This combination, along with its continuous rotation capability, produces a multitude of unique lighting effects.
Additional Information
Specs
- Housing: High Temp, Low flammability, Plastic
- Fastening System: 2 Quick Release Clamps
- Power Connection: Input/Output Seetronics TR1 Connections
- Power Cable: NEMA 5-15 to Seetronics TR1 SAC3FX
- Signal Connection: 3 and 5-Pin XLR In and Out
- Pan Movement: 560 Degree Pan with Infinity Pan Rotation
- Tilt Movement: 360 Degree Tilt with Infinity Tilt Rotation
- Mirror Ball Rotation: Infinity Mirror Ball Rotation in 2 directions
- Large Hexagon Reflectors: H101 Large Hexagon high polished metal reflectors
- Large Mirror: 13” high polished metal reflector
- Power LInk: Up to 60 units on a 100V / 20 Amp connection
- Halo Ring Light Source: 62 x 0.25W RGB
- Control Signal Support: DMX 512, RDM
- Power Input: 100-240V AC 50/60
- Power Consumption: 28 Watts / .25 Amps @110V
- Protocol: DMX 512
- Channel Modes:
- 18 Channel Mode
- 66 Channel Mode w/ pixel control
- Operating Mode: Programmable single scene via manual memory settings
- Local Control: Settings via Display
