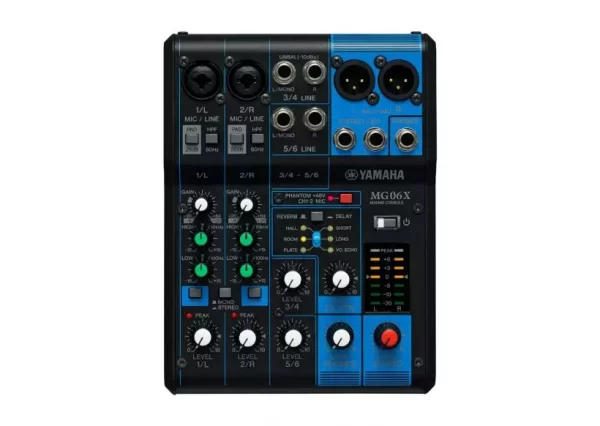

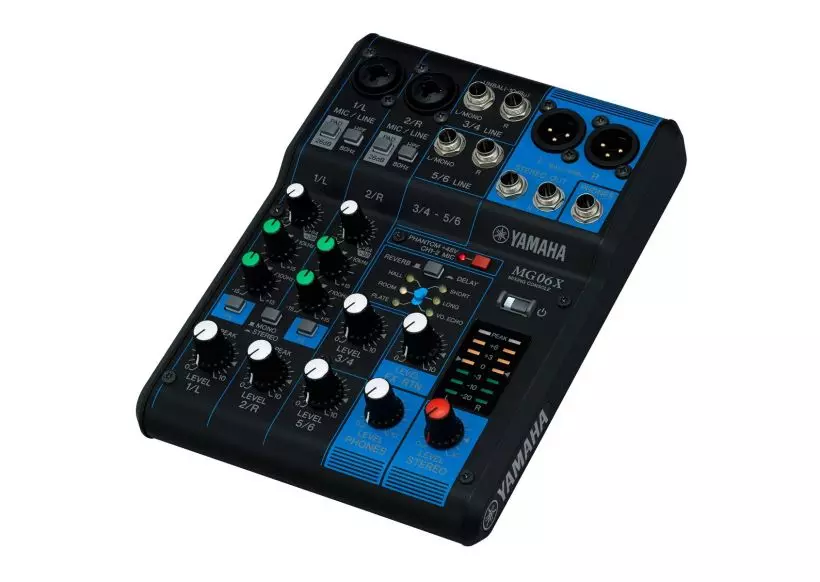

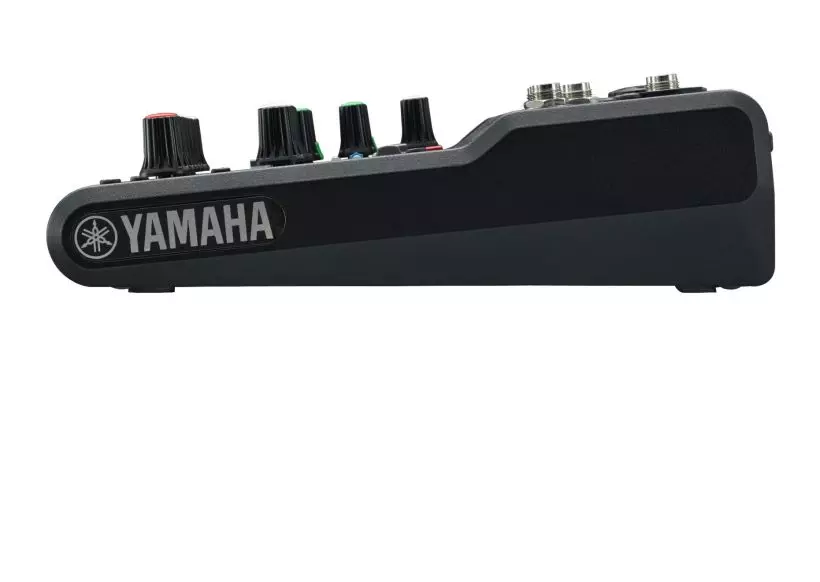

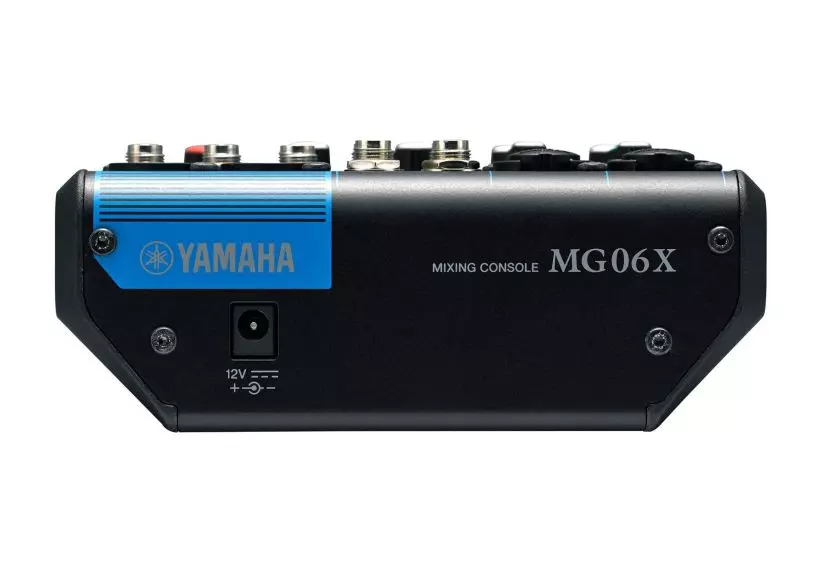

MG06X 6-Channel Analog Mixer with Effects

Specs
Mixing capability
On-board processors SPX algorithm: 6 programs
I/O
Phantom power +48 V
Input Channels
Mono[MIC/LINE] 2
Stereo[LINE] 2
Output Channels
STEREO OUT 2
PHONES 1
Bus
Stereo: 1
Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total harmonic distortion
0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response
+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk
-88 dB
Power requirements
PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption
12 W
Dimensions
W 149 mm (5.9″)
H 62 mm (2.4″)
D 202 mm (7.9″)
Net weight
0.9 kg (1.98 lbs.)
Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others
Operating Temperature: 0 to +40˚C
