VIXIA HF R80 Camera with mini HDMI Output

Standard Definition or High Definition High Definition
Television System NTSC
Video Recording system MPEG-4
Image Sensor 1/4.85-inch CMOS, RGB Primary Color Filter
Total Pixels Approx. 3.28 Megapixels
Effective Pixels Video: Approx. 2.07 Megapixels (1920 x 1080)
Photo: Approx. 2.07 Megapixels (1920 x 1080)
Maximum recording Time 16GB Internal Flash Drive in MP4*:
4 Mbps (1280 x 720)**: 8 hrs. 40 min.
17 Mbps (1920 x 1080)**: 2 hrs. 5 min.
24 Mbps (1920 x 1080)**: 1 hr. 25 min.
35 Mbps (1920 x 1080)**: 1 hr. *

Variable bit rate.
** When recording has continued for approximately 12 hours, it will automatically stop and then start.
Lens Zoom Ratio:
57x Advanced / 32x Optical / 1140x Digital

Focal Length:
2.8-89.6mm

35mm Film Equivalent:
Optical Zoom: Approx. 38.5-1232mm
Advanced Zoom Off: Approx. 38.5-1232mm
Advanced Zoom On: Approx. 32.5-1853mm

Zoom Speed:
Variable / 3 Fixed Zoom Speeds
Max. F/Stop: f/1.8-4.5
Focusing System TTL (Through The Lens)
Manual Exposure Available
Programmed AE Smart AUTO, P, SCN*1, High-brightness priority, Cinema Mode*2

*1 Portrait, Sports, Snow, Beach, Sunset Scene, Night, Low Light, Spotlight, Fireworks
*2 Cinema Standard, Vivid, Cool, Sepia, Old Movies
Max Shutter Speed Movie: 1/2000 sec.
Still Image: 1/500 sec.
Minimum Focusing Distance Auto mode: 10mm (AF linkage: WIDE end), 1m in intermediate zoom range, approx. 50cm at TELE end

All other modes: 10mm (WIDE end), 1m across entire zooming range (from edge of lens). However, approx. 50cm at tele macro setting established at this time (automatic movement to TELE end)
White Balance Auto, Daylight, Tungsten, Custom WB
Frame Rate 60P/30P/24P
Minimum Illumination P mode: Approx. 5 lux
Low Light mode: Approx. 0.4 lux
Image Stabilization Intelligent IS in Auto/Baby mode
Dynamic IS (default)
Powered IS
Macro IS
Tripod Mode

IS Modes other than Intelligent IS; Dynamic IS and Powered IS settings can be made manually in P/High-brightness priority/SCN*1/ Cinema Mode:

Standard IS
IS Off

Angular velocity detection (using piezoelectric vibration sensor) and hybrid by sensor based movement vector detection supported.

*1 Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks
Filter Diameter 43mm diameter
Viewfinder Not Available
LCD Screen 3.0-inch (7.51cm) panel, widescreen color LCD (approx. 230,000 dots)
Recording Media Built-in 16GB memory and 1 additional SD/SDHC/SDXC memory card slot
USB Terminal mini-AB: Hi-Speed USB supported
Video Terminal Signal configuration: NTSC standard color video signals
Impedance: 75 Ω
Signal level: 1 Vp-p (composite)

Horizontal resolution
Self recording/playback: Max. 530 TV lines (screen center)
Camera EE out catalog value: Approx. 530 TV lines (screen center)
Audio Types of signals: Stereo audio signal
Impedance: Less than 3 kΩ
Signal level: -10 dBV (with 47 kΩ load)
Frequency characteristic: 60 Hz to 16 kHz (range between 1 kHz reference ±3 dB)
Accessory Shoe Not Available
Supplied Video Editing Software Not Available

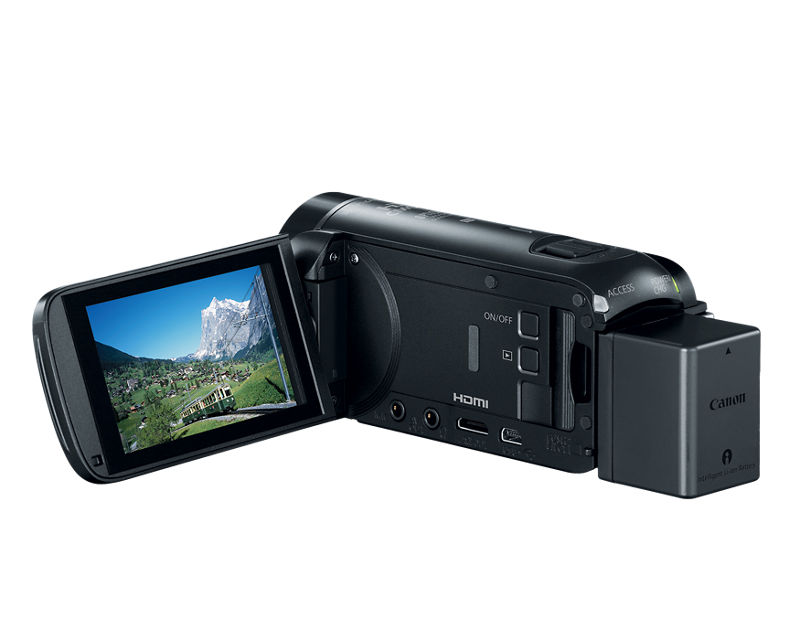

HDMI Terminal HDMI Mini Connector, output only for both images and sound
AV Mini Terminal/Headphone Terminal 3.5mm diameter stereo mini-jack (also serves as AV mini-terminal)
Impedance: 47 Ω
Output signal level: -18 dBV (with 16  load at maximum volume)
Operating Temperature range 23° to 113°F (-5° to 45°C) 60% relative humidity (operation)
32° to 104°F (0° to 40°C) 85% relative humidity (performance)
Dimensions Approx. 2.1 x 2.3 x 4.6 in. / 53 x 58 x 116mm (not including grip belt)
Weight Approx. 8.5 oz. / 240g (body, not including grip belt)
Approx. 10.9 oz. / 310g (including Battery BP-727, memory card, grip belt)
Recommended Cards 60P (DOM) recording: Memory cards of class 6 or 10

Class 4, 6 or 10 memory cards are recommended in the high-image-quality and Full HD standard modes.

Slow & Fast motion recording: Use of Class 6 or 10 memory cards

Any class of card may be used for photo shooting.
